Composite Video and PC RGB over CAT5e/6/7 Cable Using HDBaseT 5Play Convergence
Now transmit Composite Video or PC RGB signals over a CAT5e/6/7 cable using our new release HDBaseT PC/CV to HDMI Scaler Format Converter over CAT5e/6/7 Transmitter (with 5 Play Convergence). Send Composite Video or PC RGB signals along a single CAT5e/6/7 cable up to a distance of 100m without loss or degradation to the transmitted signal. At the remote end, the CV or PC line signal is upscaled to a selectable standard or high definition PAL or NTSC HDMI signal using a compatible HDBaseT Receiver, for easy HDMI cable connection to your HDTV.
New HDBaseT line transmission technology simplifies the solution for video display in and around Office and Home environs. With 5 Play Convergence functionality supporting HDMI Video and Audio, LAN/Ethernet support, System Control (IR & RS-232) and Power over Ethernet (PoE) remote end power-feed, the HDBaseT PC/CV to HDMI Scaler Format Converter over CAT5e/6/7 Transmitter (with 5 Play Convergence) is easy to instal, setup and operate. Audio support for uncompressed audio up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio.
Full support is given for all input PAL and NTSC composite video formats and standard VESA PC resolutions from VGA(640480) ~ WUXGA(19201200). Once the Composite video or PC signal is detected by the HDBaseT PC/CV to HDMI Scaler Format Converter over CAT5e/6/7 Transmitter (with 5 Play Convergence), the signal is encrypted and transmitted to the receiver end, where it is then re-formatted into an HDMI signal. The new HDMI signal can be output as a PAL or NTSC 480p, 576p, 720p, 1080i or 1080p signal for connection directly to your HDTV's HDMI input.

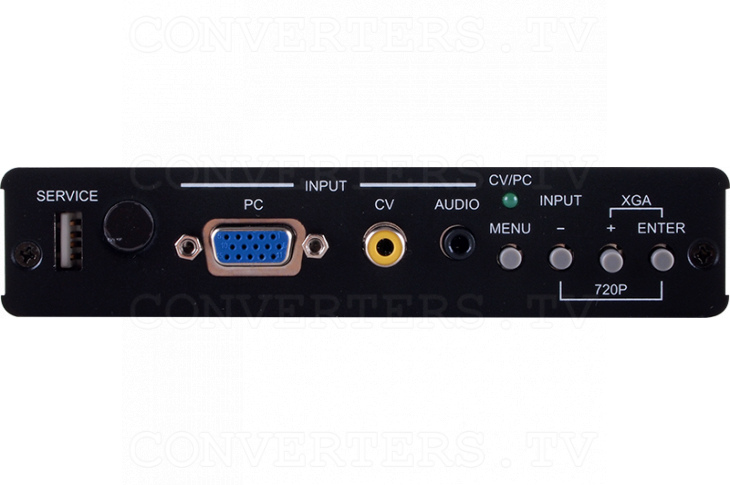

A very handy Upscaler, Format converter and CAT cable transmission module, the HDBaseT PC/CV to HDMI Scaler Format Converter over CAT5e/6/7 Transmitter (with 5 Play Convergence) is an all in one product that makes video and audio transmission around any building or home that much easier. System control is done a number of ways, either directly by using the on-panel Menu buttons or remotely, by hand-held IR Remote or by RS-232 PC command protocol. In cases where no Mains power is available at the remote end site, then the HDBaseT transmitter will power a compatible HDBaseT receiver using a pair of wires from the CAT5e/6/7 cable.
If interested to learn more about the HDBaseT PC/CV to HDMI Scaler Format Converter over CAT5e/6/7 Transmitter (with 5 Play Convergence) then please click here. For detils about the compatible HDBaseT receiver, then please click here. The User Manual is free to download and you may order and make payment here as well. If you have any further Inquiries then please contact us by email sales@converters.tv, by phone +61 2 4968 9313 or by Fax +61 2 4968 9314. We look forward to hearing from you.
