PC / HDTV to PC / HDTV converter CP-251F

Product Description

Features:

• CP-251F is not only a video scaler it is also a scan converter and a format transformer.
• The resolution of any PC or HDTV inputs can be scaled up or scaled down to any other PC or HDTV resolution, along with its frame rate converted to a selectable frequency.
• 48 MB frame memory for frame rate conversion.
• Signal format conversion between RGBHV and YPbPr.
• Input: PC(VGA/SVGA/XGA/SXGA), HDTV(480i/576i/480p/567p/720p/1080i), FH: 60 to 85 Hz
• Output: PC(VGA/SVGA/XGA/SXGA), HDTV(480p/576p/720p/1080i)
• Input mode auto detection.
• Input Setup allows for fine-tuning the output picture to a best condition through the adjustment of ADC sampling clock, and phase.
• Easy to use push buttons and OSD menu control.

Specifications:

• Input/Output: PC (15-pin D-sub cable), HDTV (15-pin D-sub to YpbPr/3 RCA cable).

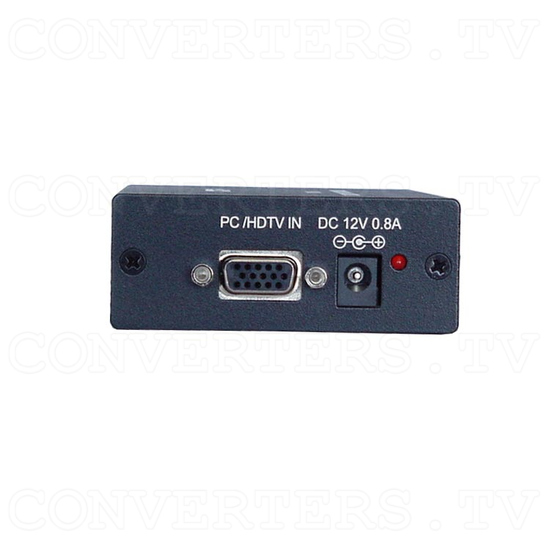

• When accepting a PC input use the 15-pin D-sub cable to connect the output of a PC device to the input connector labeled PC/HDTV on the back of CP-251F.
• When accepting a HDTV input use the 15-pin D-sub to YPbPr/3 RCA cable to connect the YPbPr/output (or YCbCr) of a HDTV device to the PC/HDTV input connector of the CP-251F.
• PC output resolutions of up to 1280 x 1024
• HDTV output resolutions of up to 1280 x 720
• Power: DC 12V 800mA Center positive

PC-VGA Resolutions:

• 640*480@60/72/75/85Hz
• 800*600@56/60/72/75/85Hz
• 1024*768@60/70/75/85Hz
• 1280*1024@60Hz
• 1366*768@60Hz

HD-Component Resolutions:

• 720*480i@59/60Hz

• 720*480p@59/60Hz

• 720*576i@50Hz

• 720*576p@50Hz

• 1280*720p@50/59/60Hz

• 1920*1080i@50/59/60Hz

• 1920*1080p@59/60Hz

• The 1080i output timing of CP-251F is "Pseudo 1080i" (960 x 540p). The standard 1080i is 1920 x1080i w/ sampling rate at 74 MHz; CP-251F's 1080i output is 960x540p which is half of the standard resolution. Therefore, it might not be accepted by some HDTVs.
